Full Auto 5 Gallon Bottle Plastic Blow Moulding Machine 80mm Screw

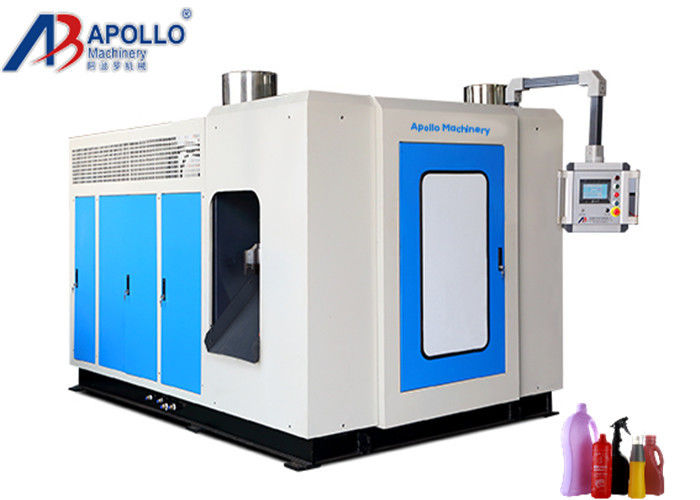

Large Image : Full Auto 5 Gallon Bottle Plastic Blow Moulding Machine 80mm Screw

Product Details:

Place of Origin:	JIANGSU, CHINA
Brand Name:	ABC
Certification:	CE/SGS

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Film packing/Carton packing/Wooden packing
Delivery Time:	30 working days
Payment Terms:	L/C, T/T
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Max. Product Volume:	5 Gallon	Screw Diameter:	80 Mm
Screw Drive Power:	30 KW	No.of Heating Zone:	4 Zones
Oil Pump Drive Power:	22 KW	Max.size Of Mold:	550X650mm
High Light:	5 gallon bottle Moulding Machine , 80mm screw Plastic Blow Moulding Machine , PC bottles Plastic Blow Moulding Machine

5 Gallon PC bottle blow molding machine is specilized in making 5 gallon PC bottles.We also have CE and ISO9001 certificate for you and offer engineer to your country to help you set up the machine.High quality assurance will be provided for you.
Equipped with special designed marterial storage
Silencer and oil system are used to reduce vibration and lubricate
The machine can be operated in step-by-step mode and also semi-auto mode.
Wide-mouth and irregular shape aslo can be produced in this machine.

Parision controllor make sure the wallthickness is perfect
The max. product volume is up to 5 gallon.
For more information about the machine,please don't hesitate to contact us.

Related technical parameter(ABLB80)


Max. Product volume	5 gallon	Dry cycle	600pc/h
Screw diameter	80 mm	Screw L/D ratio	25 L/D
Screw drive power	30 KW	Screw heating capacity	16 KW
No.of heating zone	4 zones	Output of HDPE	100 KG/H
Oil pump drive power	22 KW	Clamping force	210 KN
Max.size of mold	550X650mm	Mold stroke	350-780mm
Max.die diameter	280mm	Blowing pressure	0.8mpa
Air volume	0.8 M/MIN	Die heating power	5.3 KW
Die heating segments	4 zones
